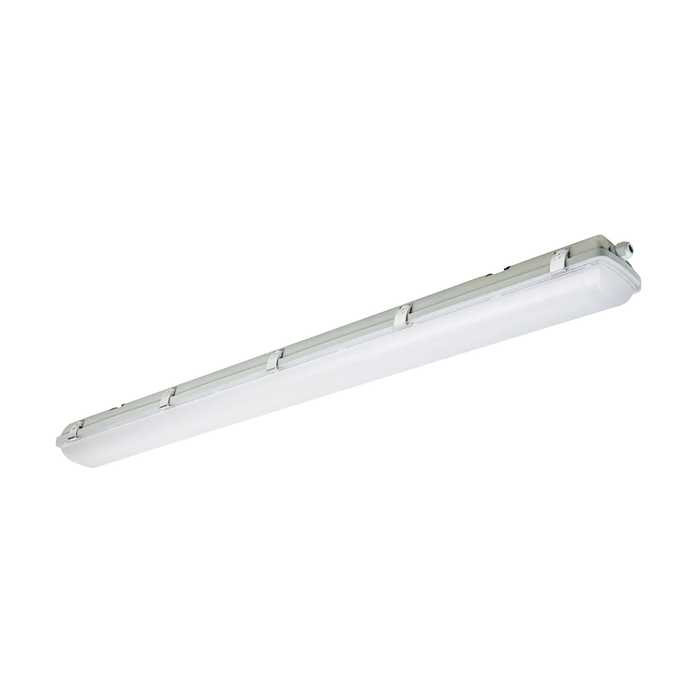

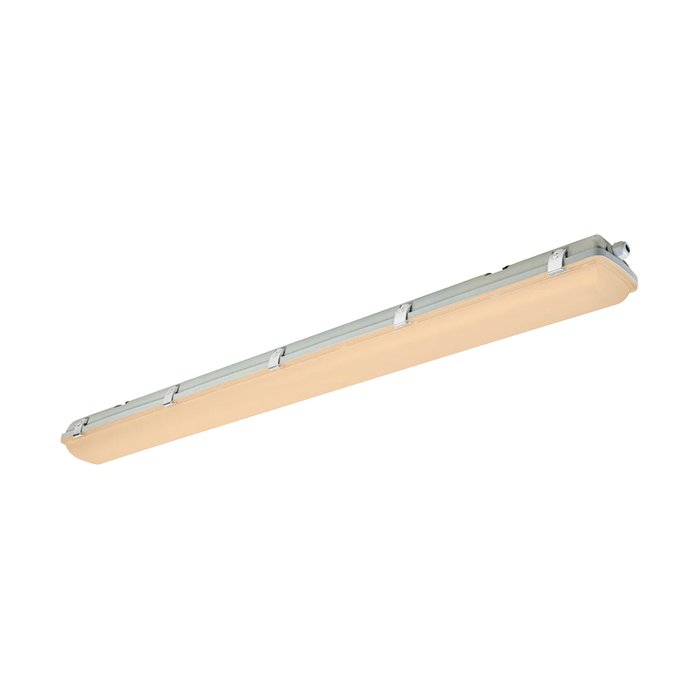

Vapor Tight G2 45W AL ACT, 4 ft
The Vapor Tight G2 45W AL ACT, 4 ft Fixture delivers efficient, durable lighting for wet, dusty, and demanding environments. First, this fixture offers adjustable wattage options of 45W, 38W, or 34W, allowing users to match output to specific applications. As a result, it produces 4,941 to 6,494 lumens of consistent, uniform light.
Next, users can select 3500K, 4000K, or 5000K color temperatures to suit different environments. Additionally, 0–10V dimming and 12Vdc auxiliary dimming provide flexible lighting control. Meanwhile, the fixture operates on 120–277 VAC, making it compatible with a wide range of electrical systems. Therefore, it installs easily in commercial and industrial applications.
Furthermore, the fixture features a gasketed enclosure that keeps out dust and moisture. Because of this, it achieves an IP66 rating for reliable wet-location performance. A high-quality ABS housing with a polycarbonate lens offers durability and a high ignition point. At the same time, the fixture performs in temperatures from -40°F to 104°F and supports a 50,000+ hour lifespan with CRI >80.

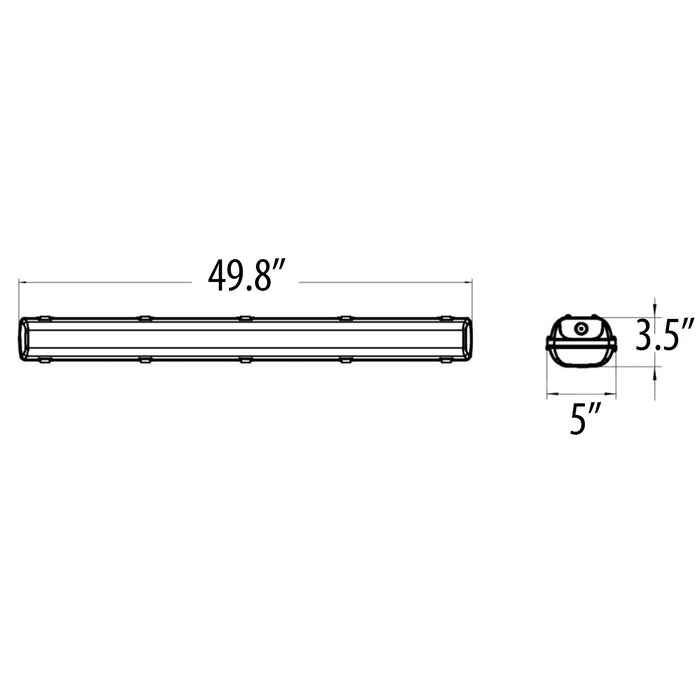

The 4ft design measures 49.8" x 5" x 3.5" and weighs 5.86 lbs, making it ideal for a variety of installations. Overall, it provides dependable performance in harsh conditions.
Key features include:
- Adjustable wattage: 45W / 38W / 34W
- Lumen output up to 6,494 lumens
- Selectable 3500K, 4000K, or 5000K CCT
- 115° beam angle
- 0–10V and 12Vdc dimming options
- IP66 rated gasketed enclosure
- Input voltage: 120–277 VAC
- Operating temperature: -40°F to 104°F
- ABS housing with polycarbonate lens
- Optional motion sensor control
- 50,000+ hour lifespan
- 5-year limited warranty
In conclusion, the Vapor Tight G2 45W AL ACT, 4 ft Fixture delivers reliable, sealed lighting for industrial and wet-location applications.
Installation Guide
