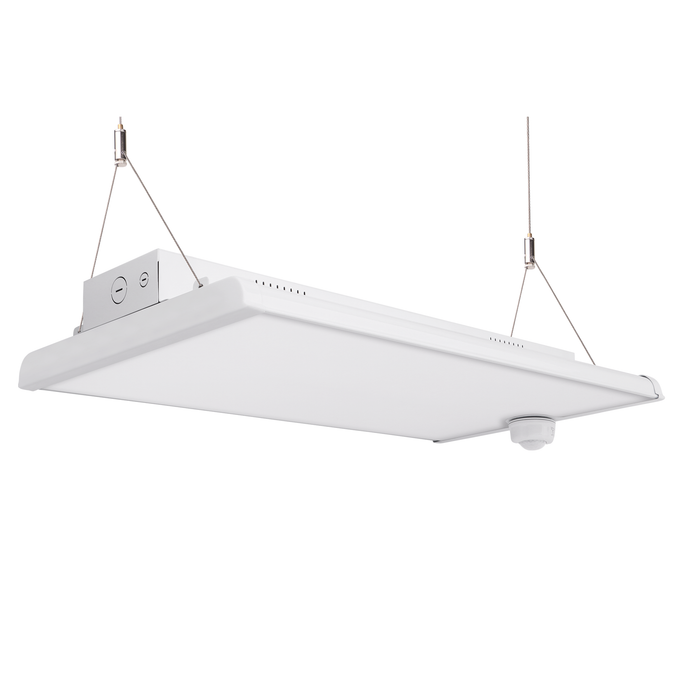

Durabay Linear 165W, AL ACT, 2ft

The Durabay Linear 165W LED High Bay – 2ft delivers efficient, high-output lighting for warehouses, commercial interiors, and industrial spaces. First, this fixture offers adjustable lumen output, allowing users to select 165W, 140W, or 130W. As a result, light levels can be matched precisely to each application. Lumen output ranges from 20,450 to 24,450 lumens, providing bright, uniform coverage.

Next, the fixture features selectable 4000K or 5000K color temperatures. Additionally, 0–10V dimming allows complete lighting control and energy savings. Meanwhile, the fixture operates on 100–277 VAC, which supports standard commercial electrical systems. Therefore, it installs easily in a wide range of facilities.

Furthermore, the Durabay Linear 165W uses a heavy-duty thick-gauge steel housing with a clean white finish. Because of this, the fixture resists twisting and bowing over time. It performs reliably in temperatures from -40°F to 113°F. At the same time, a 120° beam angle delivers even light distribution, while a CRI above 80 ensures clear visibility.

The compact 2ft linear design measures 23.23” x 12.6” x 2.95” and supports surface-mount installations. Overall, this fixture offers flexibility and durability for demanding indoor environments.

Key features include:

• Adjustable wattage: 165W / 140W / 130W

• Lumen output up to 24,450 lumens

• Selectable 4000K or 5000K CCT

• 120° beam angle

• 0–10V dimming capability

• Input voltage: 100–277 VAC

• Operating temperature range: -40°F to 113°F

• Heavy-duty thick-gauge steel construction

• Surface mount installation

• Optional motion sensors and emergency battery backup

• UL listed

• 5-year limited replacement warranty

In conclusion, the Durabay Linear 165W provides a dependable, adjustable lighting solution for modern commercial and industrial interiors.

View and Download Spec Sheet
