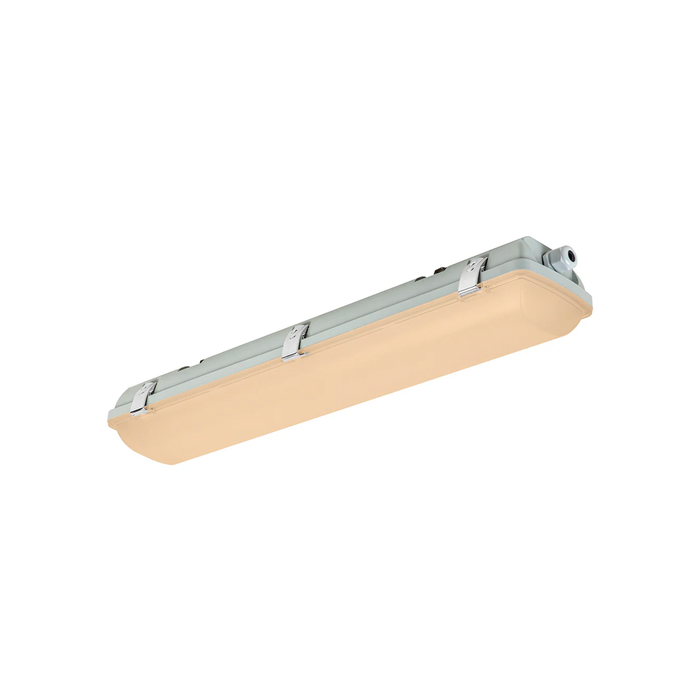

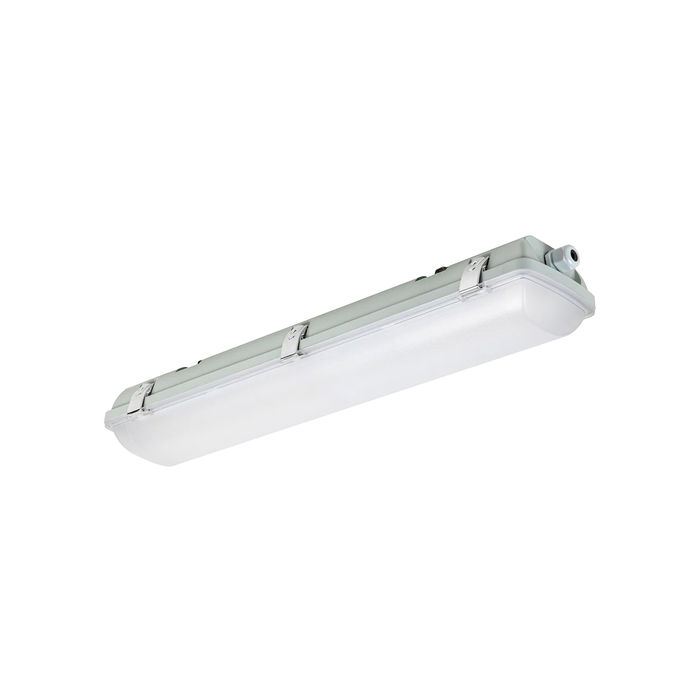

Vapor Tight G2 30W AL ACT, 2 ft
The Vapor Tight G2 30W AL ACT, 2 ft Fixture delivers compact, reliable lighting for wet, dusty, and demanding environments. First, this fixture offers adjustable wattage options of 30W, 25W, or 20W, allowing users to match output to specific applications. As a result, it produces 2,872 to 4,021 lumens of consistent, efficient light.
Next, users can select 3500K, 4000K, or 5000K color temperatures to suit different spaces. Additionally, 0–10V dimming and 12Vdc auxiliary dimming provide flexible lighting control. Meanwhile, the fixture operates on 120–277 VAC, making it compatible with a wide range of systems. Therefore, it installs easily in commercial and industrial settings.
Furthermore, the fixture features a gasketed enclosure that keeps out dust and moisture. Because of this, it achieves an IP66 rating for wet-location use. A high-quality ABS housing with a polycarbonate lens ensures durability and a high ignition point. At the same time, the fixture performs reliably in temperatures from -40°F to 104°F and delivers a 50,000+ hour lifespan with CRI >80.

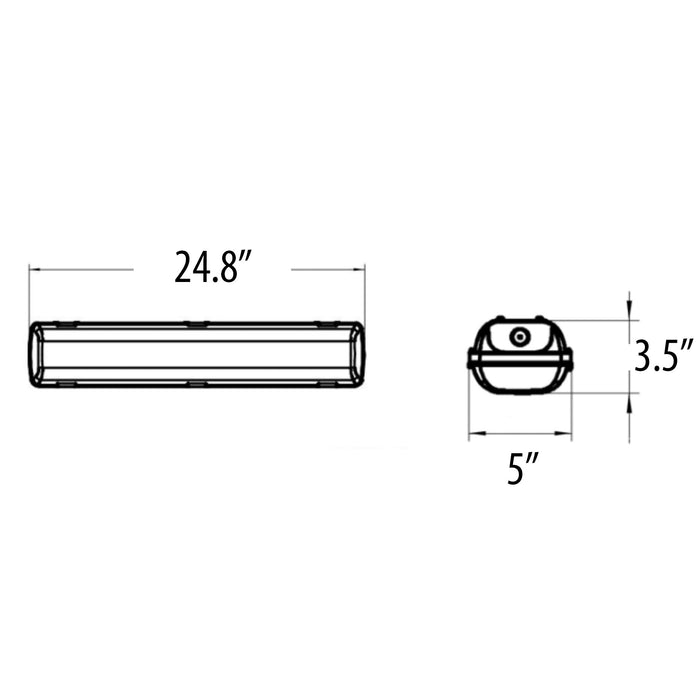

The 2ft design measures 24.8" x 5" x 3.5" and weighs 3.4 lbs, making it ideal for compact installations. Overall, it provides dependable performance in harsh environments.
Key features include:
- Adjustable wattage: 30W / 25W / 20W
- Lumen output up to 4,021 lumens
- Selectable 3500K, 4000K, or 5000K CCT
- 115° beam angle
- 0–10V and 12Vdc dimming options
- IP66 rated gasketed enclosure
- Input voltage: 120–277 VAC
- Operating temperature: -40°F to 104°F
- ABS housing with polycarbonate lens
- Optional motion sensor control
- 50,000+ hour lifespan
- 5-year limited warranty
In conclusion, the Vapor Tight G2 30W AL ACT, 2 ft fixture delivers durable, sealed lighting for compact industrial and wet-location applications.
